特點：

1.一台機可實現四種產品的單側麵貼標，圓瓶、扁瓶、方瓶、異形瓶。

2.配置自動分瓶結構，導瓶前自動分開間距，保證後續導瓶、輸送和貼標的穩定性。

3.智能控製，自動光電追蹤，具備無物不貼標，無標自動校正和標簽自動檢測功能。

4.配置兩重覆標結構，首次保證貼標精度，二次彈壓式覆標，有效消除氣泡和保證標簽頭尾貼緊

主要參數：

貼標速度 ：0-180瓶/分鍾（速度與直徑有關）

貼標精度 ： ±1mm

兼容直徑範圍 ：直徑25-150mm（根據客戶要求訂製）

輸送帶離地高度：800mm(可根據客戶要求訂製）

電壓： 220V 50HZ

空氣壓力 ：5kg/cm³

兼容標簽尺寸 ：長度10-300  寬度10-150（可訂製）

設備尺寸 ：2200*800*1580mm

機械重量 ：約200kg

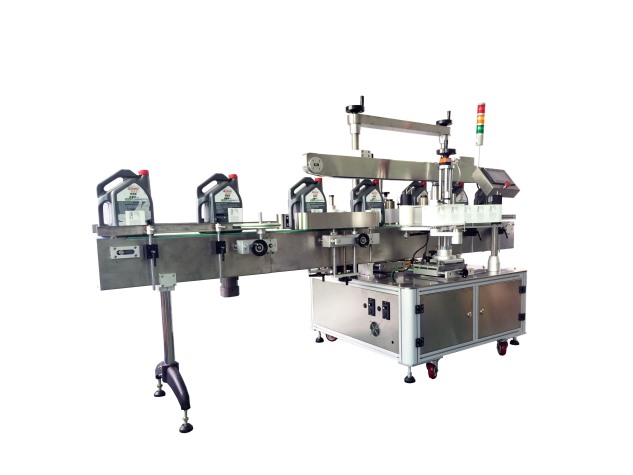

Pressure sensitive labeler for single side

Features:

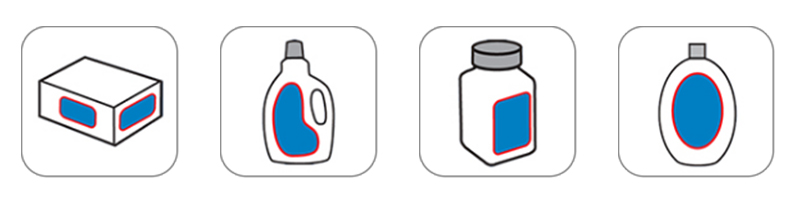

1. One machine can realize single side labeling of four products, round bottle, flat bottle, square bottle and shaped bottle.

2. The automatic splitting structure is configured, and the spacing is automatically separated before the guiding bottle to ensure the stability of subsequent guiding, conveying and labeling.

3. Intelligent control, automatic photoelectric tracking, with no object no labeling, no standard automatic calibration and automatic label detection.

4. Configure the double-overlaying structure to ensure the labeling accuracy and the second elastic-type overlay for the first time, effectively eliminating the air bubbles and ensuring that the label head and tail are tightly attached.

Main parameters:

Labeling speed: 0-180 bottles / minute (speed is related to diameter)

Labeling accuracy : ±1mm

Compatible diameter range: diameter 25-150mm (customized according to customer requirements)

Height of conveyor belt from the ground: 800mm (can be customized according to customer requirements)

Voltage: 220V 50HZ

Air pressure: 5kg/cm3

Compatible label size: length 10-300 width 10-150 (customizable)

Size: 2200*800*1580mm

Weight: about 200kg
